Tangential Field Strength Meter

MagnaCheck Data Sheet

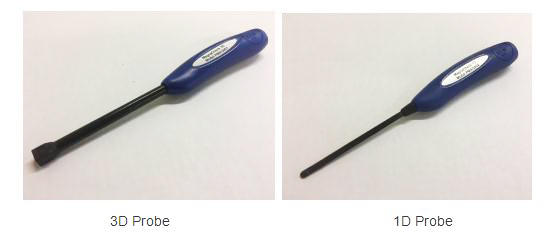

  3D Probe 1D Probe
Measurement range To 2000 Gauss To 1000 Gauss
Units Gauss, mTesla, Ka/m
Measurement modes DC, AC peak, true RMS
MPI bench support True RMS for thyristor switched fields True RMS and shot time measurement**
Peak hold mode Off, 1, 2, 5 and 10 seconds
Measurement sample rate 70 samples/second 500 samples/second
Measurement resolution 0.16 Gauss 0.1 Gauss
Probe types 3D Auto Recognition 1D Transverse
Sensor calibration Stored digitally in probe
Measurement accuracy 1%
Standards compliance ASTM E1444/1444M-16 and EN ISO 9934-3
Zeroing Manual zero with null pot supplied
Display type Colour LCD with selectable backlight
Display size and resolution 2.8” (70mm) 320x240 pixels
Power 2 x 1.5V AA batteries.
Typical battery life In excess of 10 hrs continuous use
Instrument dimensions 163mm x 80mm x 25mm ( 168mm x 85mm x 30mm with protective rubber boot )
Instrument weight 350g ( 0.77 lb ) including batteries
